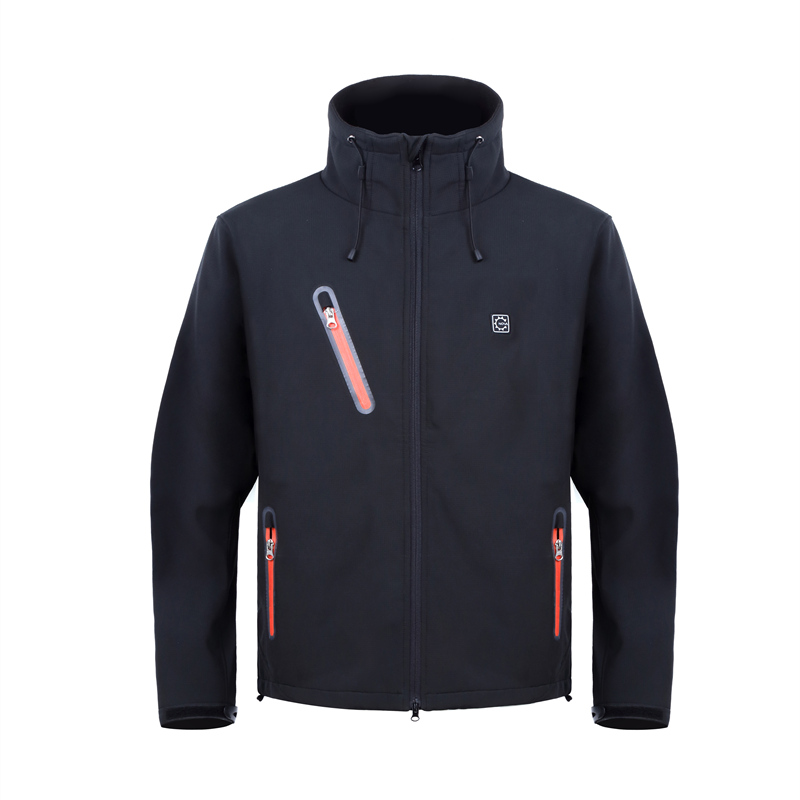

Wholesale Custom Waterproof Battery Heated Jacket

 Features of Heated Jacket

• The bonded soft shell fabric quickly wicks away the moisture then keep you dry and comfortable. The 4-way stretch polyester blended with spandex let you move freely.
• One fiber heating pad in the lower back and two heating pads on the chest area, your entire core of heated sofshell jacket is sure to stay warm for hours.
• The waterproof heated softshell jacket is heated with high efficient rechargeable lithium battery. Its work time is  3-9 hours, and its smart controller with 3 temperature settings (high, med, low with pre-heat function).
• 180gsm micro soft fleece lining is soft, light and warm.
• YKK waterproof zipper for all heated jackets, other brands also available for your demands.
• Hood, bottom and cuff of the headed jacket are adjustable.

 Specifications of Carbon Fiber Heating Pad

The Carbon Fiber Heating Pad (also called Carbon Fiber Heating Element) is the most important component of Heated Clothes. It consists of the electric heating sheet, the switch, the wire.

Our carbon fiber heating pad is made with carbon fiber, not metal wire. It is waterproof and safe to dress, rub, fold or wash. The switch with  LED controller has four heating modes (Preheat, High, Mid and Low) for heat setting. The wire is specially designed and manufactured to fit the heating clothing requirements. The 12V DC power is lithium battery with high quality and high performance. All of them are integrated seamless to form the electric heating system for heated workwear. The following are the specifications of carbon fiber heating pad .

All our Carbon Fiber Heating Pad for heated clothing should be inspected with strict processes to assure the quality before integrating into the heated clothes. The followed are the standard inspection processes.

1. Prepare the DC power supply and adjust the voltage to direct 12V.

2. Connect the heating sheet correctly with the power then turn on the switch.

3. Electric Current Testing. Open the electric heated sheet to see if the current meets the requirements of the above table. If it is out of range, the electric heating sheet should be rejected. The current value of the test will consistent with the tolerance of ±0.02A.

4. Washable Testing. Put the entire electric heating sheet into the water after immersed. Rub the sheet to simulate the effect of water washing at the same time. The sample is randomly selected for 5%.

5. Temperature protection Testing. Wrap up the electric heat sheet and monitor the temperature with the infrared thermostat. The current will be cut off (value 0) when the temperature reached 50℃ (+/- 5 ℃), and the current will be automatically connected when cooling, random sampling is 10%. The function will help avoiding fire if the user forgets to close the power.

6. All finished heated clothing products require 100% inspection.

Manufacture process is very important to achieve high quality products with controlled cost.  Our modern factory is equipped with advanced machines  to keep high product quality, shorter delivery time and competitive cost to meet the demands of our worldwide customers. Most of our products had been kept up with the international forefront counterparts. Some of them have enjoyed leading positions, especially heated clothes.
Our heated clothing is made with strict processes and quality assurance. The heating system is made with carbon fiber not metal wire, and then it is safe to wear. We will take 100% inspection to ensure that the quality of each product after finish sewing.
